Intercept® 2.5

Built to improve speed, it can produce spacers at a rate of up to 85 feet per minute.

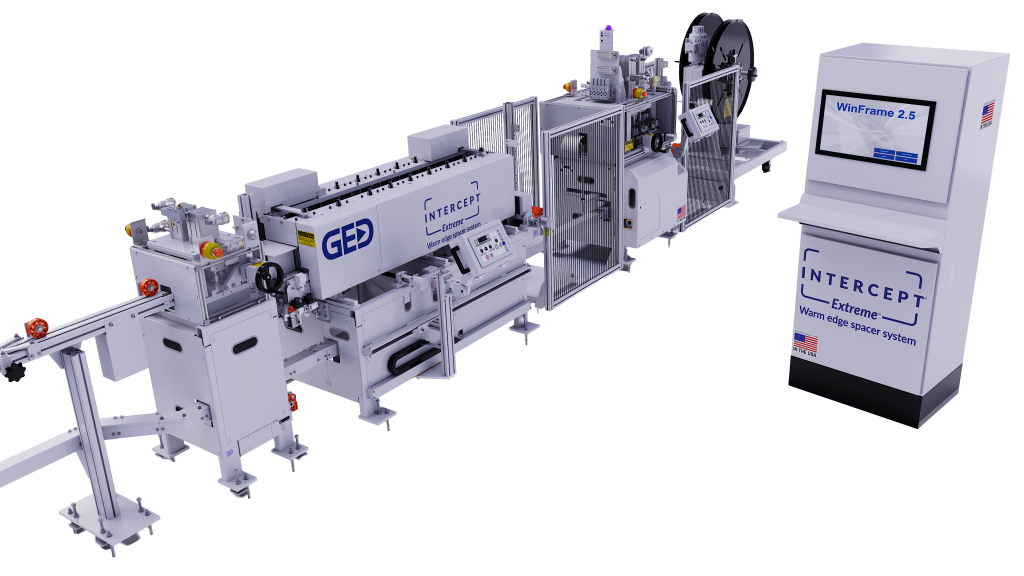

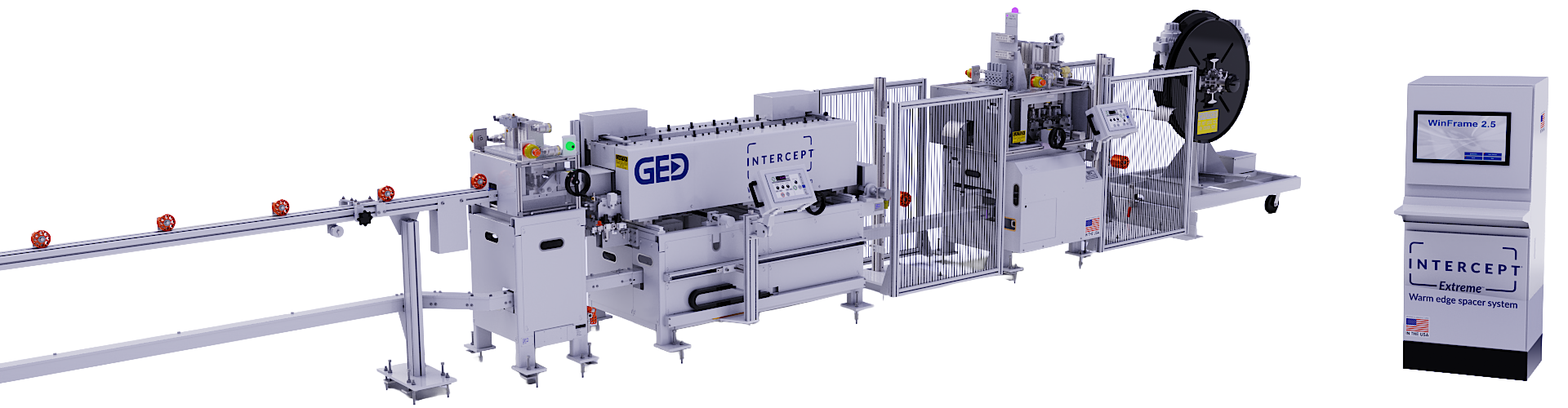

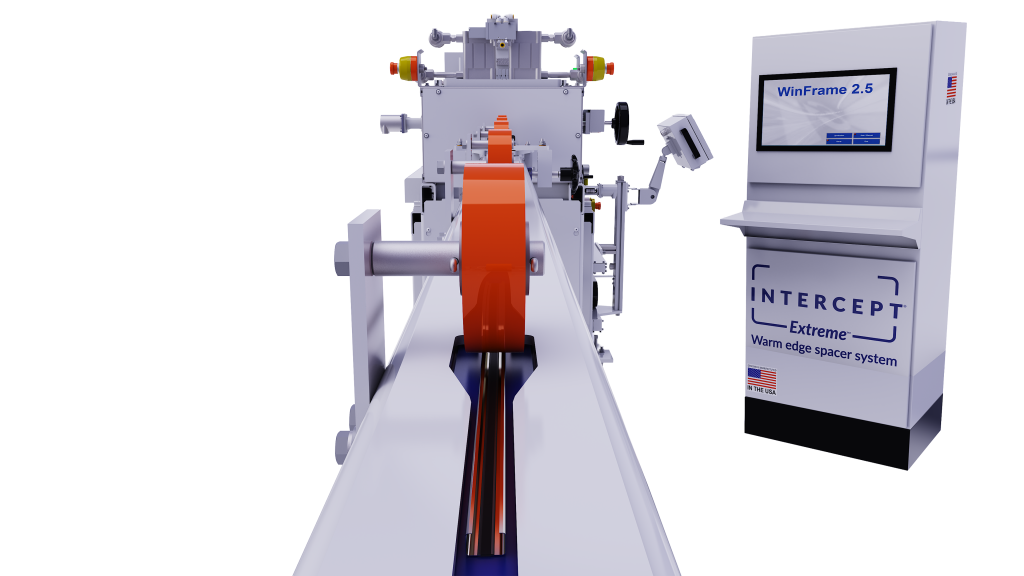

About Intercept® 2.5

With the Intercept® 2.5, industry professionals are assured an ease of transition, operation and maintenance, along with improved productivity.  Built to improve speed, it can produce spacers at a rate of up to 85 feet per minute, achieving up to 8 spacers a minute (without muntins).  Industry professionals will recognize the familiar footprint and marvel at the very latest state-of-the-art technologies that easily enables the production of not only Intercept ULTRA Stainless, but also ThinPlate or BlackLine.

Providing superior thermal performance, durability and strength, Intercept 2.5 makes it faster and less expensive to produce than other spacers.  Not only does the 2.5 allow for “Just-in-Time” production in the order required without operator errors, it also eliminates internal muntin grid misalignment with precise notching and snap-in muntin clips.  The control system provides significant hardware reduction, making operations and maintenance trouble-free.  Patented technology ensures the integrity of the 4th corner identical to first 3 corners, for a consistent product.

Features

  • Allows for “Just-in-Time” production in the order required without operator errors
  • Eliminates internal muntin grid misalignment with precise notching and snap-in muntin clips
  • Intercept spacer design provides superior structural integrity

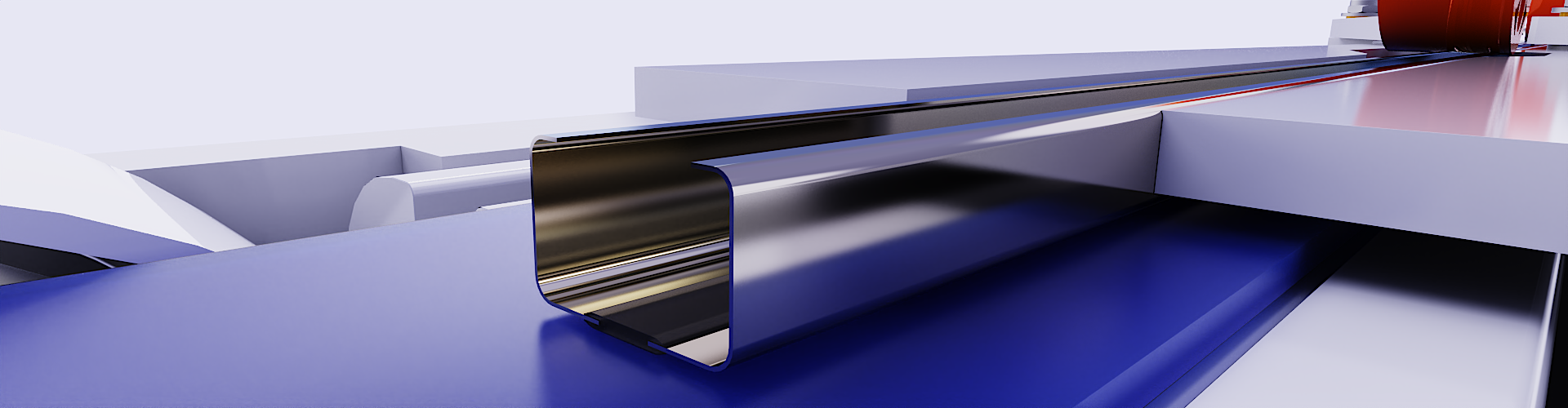

  • U-channel design for superior thermal performance and durability
  • Integrated software with batch information downloading
  • Automatic muntin location punching
  • Updated control system compatible with Windows 7 and WinIG 4/5 with improved/remote diagnostics
  • Can automatically change from Intercept ULTRA to ThinPlate or BlackLine on-the-fly
  • High-speed Corner Crimper
  • Position width clamping with anti-drift monitoring
  • Quick-Release tooling reduces maintenance time
  • Automatic gas hole punching of warm edge spacers for single or dual-hole filling
  • Integrated with Intercept Corner+
  • Automatic remake capability allows the operator to remake frames with the push of a button
  • Multiple Conveyor lengths
